Thermofix’s monofilament polyester. It’s main characteristic consists in the construction of the braiding which allows the product to increase its interior diameter considerably and at the same time contracting in length.

Wire harnessing is made easy due to the expandability and ease of insertion of different diameters within the same sleeving. Wires can also be poked the through the sleeving at any point, to do harness breakouts.

Mechanical and thermal protection of conductors

Expandable

Heat resistant

Resistant to aggressive agents

Easy to install

Standard Colour-Black

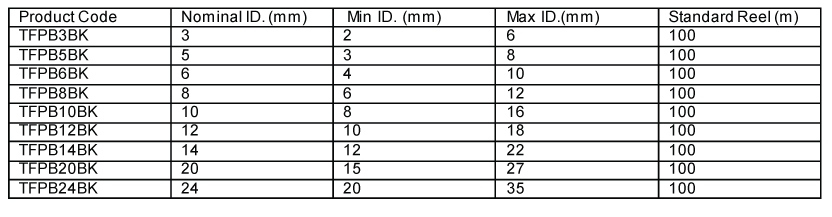

Technical Data

Material                                      Polyester

Operating Temperature                 -50°C to 150°C

Expansion Ratio                          1:2

Monofilament Diameter                0.22mm

Chemical Resistance                   Resistant to most aggressive chemicals
